AK-354 armoured motor gunboats (project 1204) (1967 - 1972), PSKR-316 border guard boats (project 1204) (1967 - 1972)





Project 1204

Ships


Names Builders Commissioned Losses Transfers Discarding

Navy

AK-197, later- ПСКР-... [PSKR-...]

AK-198

AK-201-203

AK-205-209

AK-211

AK-222-225

AK-241, later- ПСКР-... [PSKR-...]

AK-242

AK-243, 5.1974- ПСКР-381 [PSKR-381]

AK-244

AK-245, 10.1985- ПСКР-389 [PSKR-389]

AK-246-248

AK-249, 10.1985- ПСКР-288 [PSKR-388]

AK-250, later- ПСКР... [PSKR-...]

AK-255

AK-314

AK-316-319

AK-354

AK-384

AK-385, 7.1974- ПСКР... [PSKR-...]

AK-387

AK-397-399

AK-404-406, 7.1974- ПСКР-382-384 [PSKR-382-384]

AK-407, 7.1974- ПСКР-386 [PSKR-386]

AK-408, 409

AK-483-485, 5.1974- ПСКР-378-380 [PSKR-378-380]

AK-489

AK-506

AK-507, 10.1985- ПСКР-387 [PSKR-387]

AK-508, 11.1985- ПСКР-390 [PSKR-390]

AK-509, 12.1994- ПСКР-... [PSKR-...]

AK-563, 564

AK-581-589

AK-599

AK-602

Border Guard

ПСКР-316-321 [PSKR-316-321]

ПСКР-325, 326 [PSKR-325, 326]

ПСКР-328-331 [PSKR-328-331]

ПСКР-333 [PSKR-333]

ПСКР-336-377 [PSKR-336-377]

Zaliv, Kerch' (98): AK-197, 198, 201-203, 205, 207-209, 211, 222, 224, 225, 241-250, 354, 384, 385, 387, 397-399, 404-409, 483-485, 489, 506-509, 563, 564, 581-585, 587-589, 599, 602, PSKR-336-377

61 kommunara, Nikolayev (20): AK-206, 223, 255, 314, 316-319, 586, PSKR-316-321, 325, 326, 328-331, 333

1967: AK-354, PSKR-316, 318-321

1968: AK-314, 384, 385, 387, 563, 564, 581-589, 599, 602, PSKR-317, 325, 326, 328-331, 333

1969: AK-206, 222-225, 255, 316-319, 397-399, 404-409, PSKR-336-341

1970: AK-483-485, 489, 506-509, PSKR-342-357

1971: AK-241-250, PSKR-358-370

1972: AK-197, 198, 201-203, 205, 207-209, 211, PSKR-371-377

none

Abkhazia (4): 8.2004- 4 pr. 1204

Kampuchea (4): 3.1984- 2 pr. 1204, 1.1985- 2 pr. 1204

Uzbekistan (6): 1992- 6 pr. 1204

Ukraine (4): 4.1994- AK-211, 246, 397, 563

1988: AK-404

1989: AK-207, 222, 405, 406, 485

1990: PSKR-318, 320, 321

1991: AK-247

1992: AK-319, 354, 587

1993: AK-203, 242, 314, 316-318, 384, 387, 581, 584, 602

1994: AK-198, 205, 398, 399, 408, 409, 489, 506, 509, 564, 583, 585, 588, 589, PSKR-341

1996: AK-245

1998: AK-197, 385, 483, 507, 508, PSKR-336, 345, 376 and others

2008: AK-202

2016: AK-224, 582, 599

in service (2019): AK-201, 209, 223, 248



Technical data


Displacement standard, t
Displacement full, t

71

77

Length, m

27.4

Breadth, m

4.32

Draught, m

0.85

1.00

No of shafts

2

Machinery

2 M-50F diesels

Power, h. p.

2400

Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)

320(10)

Armour, mm

belt: 8, deck: 4, turret: 15 - 10, CT: 10 - 4

Armament

AK-206, 223, 255, 314, 316-319, 354, 586, PSKR-316-321, 325, 326, 328-331, 333, 354, 355: 1 x 1 - 76/48 D-56TS, 1 x 1 - 7.6/94, 10 mines

AK-222, 224, 225, 384, 385, 387, 397-399, 404-409, 563, 564, 581-585, 587-589, 599, 602, PSKR-336-353: 1 x 1 - 76/48 D-56TS, 1 x 2 - 14.5/93, 1 x 1 - 7.6/94, 10 mines

AK-508, 509, PSKR-356: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/112 2M-3M, 1 x 1 - 7.6/94, 4 x 1 - 30 BP-30 Plamia GL, 10 mines

AK-242, 250, 483-485, 489, 506, 507, PSKR-357-367: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/112 2M-3M, 1 x 1 - 7.6/94, 10 mines

AK-197, 198, 201-203, 205, 207-209, 211, 241, 244-249, PSKR-368-377: 1 x 1 - 76/48 D-56TS, 1 x 2 - 25/112 2M-3M, 1 x 1 - 7.6/94, 1 x 17 - 140 BM-14-17 RL, 4 x 1 - 30 BP-30 Plamia GL, 10 mines

Electronic equipmentDonets-2 radar
Complement

14



Standard scale images


<i>AK-354 </i>1967
AK-354 1967
<i>AK-201 </i>2015
AK-201 2015
<i>AK-483 </i>1979
AK-483 1979


Graphics

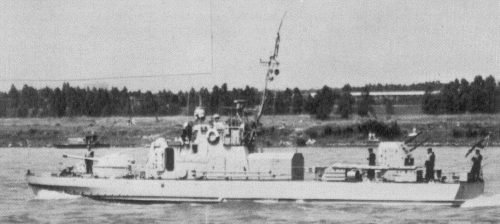

Project 1204
Project 1204


Project history

Work on river craft reviewed about 1965, presumably in response to the growing tension between the Soviet Union and China, eg on the Amur River. TsKB-5 (now Almaz) developed a new Project 1204. The lead boat was completed in Kerch in 1967. Project 1204 craft could embark a battalion of naval infantry, although they would have to be billeted aborder another ship.

Ship protection

Citadel and turret were protected by splinter-proof armour.

Modernizations

None.

Naval service

In 2015 four craft served at Caspian.
