PSKR-500 border guard boats (project 14230) (2001-2005), TS-100 custom patrol craft (pr. 14232) (1997-2007)





PSKR-500 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
ПСКР-500 [PSKR-500] 135 701 Volga, Nizhniy Novgorod   23.6.2000 12.2001 in service (2019) Project 14230 (Border Guard)
ПСКР-501 [PSKR-501] 415 702 Volga, Nizhniy Novgorod 1997 22.7.2005 10.2005 in service (2019) Project 14230 (Border Guard)
ТС-100 [TS-100]   801 Yaroslavl SYd 21.12.1994 3.10.1996 30.9.1997 in service (2019) Project 14232 (Custom)
ТС-101 [TS-101], 5.2008- Дмитрий Шишков [Dmitriy Shishkov]   802 Yaroslavl SYd 31.5.1995 15.11.2002 20.8.2003 in service (2019) Project 14232 (Custom)
Порт-Петровск [Port-Petrovsk] (ex-ТС-102 [TS-102])   803 Yaroslavl SYd 2.4.1995 18.8.2006 2.12.2007 in service (2019) Project 14232 (Custom)
Пётр Матвеев [Piotr Matveev]   420 Khabarovsk SYd     1998 in service (2019) Project 14232 (Custom)
Павел Верещагин [Pavel Vereshchagin]   421 Khabarovsk SYd   2000 5.11.2000 in service (2019) Project 14232 (Custom)
Виталий Кирсанов [Vitaliy Kirsanov]   422 Khabarovsk SYd     2.11.2001 in service (2019) Project 14232 (Custom)


Technical data


Displacement standard, t

pr. 14230: 84

pr. 14232: 86

Displacement full, t

pr. 14230: 100

pr. 14232: 99

Length, m

pr. 14230: 36.0

pr. 14232: 35.4

Breadth, m

pr. 14230: 7.85

pr. 14232: 8.30

Draught, m

pr. 14230: 2.16

pr. 14232: 2.00 max

No of shafts

2

Machinery

2 M-533 diesels

Power, h. p.

10000

Max speed, kts

pr. 14230: 55

pr. 14232: 52

Fuel, t

diesel oil

Endurance, nm(kts)

pr. 14230: 800(30)

pr. 14232: 500(30)

Armament

pr. 14230: 1 x 6 - 30/54 AK-306

pr. 14232: 1 x 1 - 12.7/79, 1 x 1 - 7.6/90

Electronic equipment

pr. 14230: MR-3PV Liman-18M1 radar

pr. 14232: Liman-T radar

Complement

16



Graphics


<i>PSKR-500 </i>2006
PSKR-500 2006

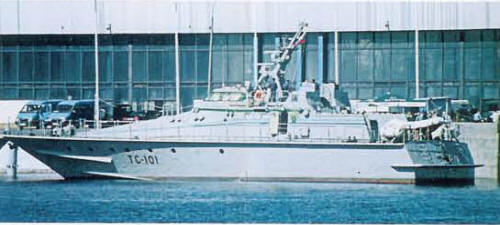

<i>TS-101 </i>2003
TS-101 2003


Project history

Large fast patrol craft.

Modernizations

2010s, TS-100: - Liman-T radar; + Furuno M-1934C radar

2010s, Dmitriy Shishkov: - Liman-T radar; + Furuno FR-8062, Furuno M-1724C/C-MAP radars

Naval service

No significant events.
