VB95 river monitors (1988-1993)
Rovine 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 8.1991- Rahova | VB94, 8.1991- 176 | Şantierul Naval 2 Mai, Mangalia | 1987 | 14.4.1988 | in service (2019) | ||
| 8.1991- Opanez | VB95, 8.1991- 177 | Şantierul Naval 2 Mai, Mangalia | 1988 | 24.7.1990 | in service (2019) | ||
| 8.1991- Smârdan | VB96, 8.1991- 178 | Şantierul Naval 2 Mai, Mangalia | 1990 | 24.7.1990 | in service (2019) | ||
| Posada | 179 | Şantierul Naval 2 Mai, Mangalia | 1990 | 14.5.1992 | in service (2019) | ||
| Rovine | 180 | Şantierul Naval 2 Mai, Mangalia | 1989 | 30.7.1993 | in service (2019) |
Technical data
| Displacement standard, t | 330 |
|---|---|
| Displacement full, t | 410 |
| Length, m | 50.7 |
| Breadth, m | 8.05 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 220(16) |
| Armour, mm | turret, hull |
| Armament | 1 x 4 Strela-2M SAM (4 9K32M), 1 x 1 - 100/54 D-10TG, 1 x 2 - 30/80 M53, 2 x 4 - 14.5/93, 2 x 1 - 14.5/93, 2 x 40 - 122 APRN-122 RL, mines |
| Electronic equipment | R722 radar |
| Complement | 47 |
Standard scale images
VB95 1990
Graphics

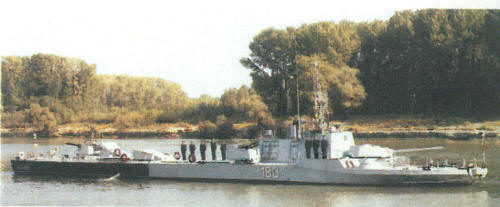

Rovine 2003
Project history
Main armament was a tank gun in the turret of T-54A tank. Project Brutar II with superstructure. The BM-21 rocket launches were retracted into the hull for reloading.
Ship protection
Splinter and bullet proof.
Modernizations
None.
Naval service
No significant events.
