VB76 small river monitors (1973-1977)





Locotenent Ghe Dumitrescu 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
8.1991- Maior Constantin Ene VB76   Şantierul Naval 2 Mai, Mangalia   1972 12.1973 stricken 2004-05
8.1991- Maior Gheorghe Şonţu VB77   Şantierul Naval 2 Mai, Mangalia     4.1974 stricken 2004-05
8.1991- Căpitan Ganescu VB78   Şantierul Naval 2 Mai, Mangalia     18.6.1974 stricken 2002-03
8.1991- Căpitam Ion Grigore Năstase VB79   Şantierul Naval 2 Mai, Mangalia     30.8.1974 stricken 2004-05
8.1991- Căpitan Nicolae Lascăr Bogdan VB80   Şantierul Naval 2 Mai, Mangalia     28.12.1974 stricken 2004-05
8.1991- Locotenent Bordeianu VB81   Şantierul Naval 2 Mai, Mangalia     31.3.1975 stricken 2002-03
8.1991- Locotenent C. Stanescu VB82   Şantierul Naval 2 Mai, Mangalia     30.5.1975 stricken 2004-05
8.1991- Locotenent N. Stoicescu VB83   Şantierul Naval 2 Mai, Mangalia     1.7.1975 stricken 2004-05
8.1991- Sublocotenent I. Elefterescu VB84   Şantierul Naval 2 Mai, Mangalia     30.8.1975 stricken 2004-05
8.1991- Sublocotenent Alex Izvoranu VB85   Şantierul Naval 2 Mai, Mangalia     1975 stricken 2004-05
8.1991- Locotenent I. Alexandrescu VB86   Şantierul Naval 2 Mai, Mangalia     1975 stricken 2004-05
8.1991- Locotenent Ghe Dumitrescu VB87   Şantierul Naval 2 Mai, Mangalia     25.12.1975 stricken 2004-05
8.1991- Căpitan Mărăcineanu VB88   Şantierul Naval 2 Mai, Mangalia     1976 stricken 2002-03
8.1991- Locotenent Călinescu VB89   Şantierul Naval 2 Mai, Mangalia     1976 stricken 2002-03
8.1991- Maior Nicolae Grigore Ioan VB90   Şantierul Naval 2 Mai, Mangalia     1976 stricken 2002-03
8.1991- Maior D. Giurescu VB91   Şantierul Naval 2 Mai, Mangalia     1976 stricken 2004-05
8.1991- Căpitan Mihail Romano VB92   Şantierul Naval 2 Mai, Mangalia     5.1977 stricken 2002-03
8.1991- Locotenent G. Paraschivescu VB93   Şantierul Naval 2 Mai, Mangalia     7.1977 stricken 2004-05


Technical data


Displacement standard, t
Displacement full, t127
Length, m

32.4

Breadth, m

4.80

Draught, m0.90
No of shafts

2

Machinery

2 diesels

Power, h. p.

1700

Max speed, kts

17

Fuel, t

diesel oil

Endurance, nm(kts)
Armour, mmsplinter-proof
Armament

1 x 1 - 76/42 ZIS-3, 2 x 2 - 14.5/93, 2 x 1 - 82/12 mortars

Complement25


Standard scale images


<i>VB76 </i>1975
VB76 1975


Graphics

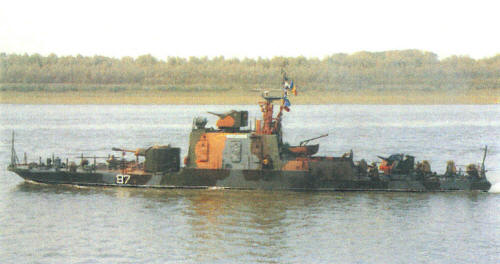

<i>Locotenent Ghe Dumitrescu</i> 2003
Locotenent Ghe Dumitrescu 2003


Project history

Small armoured gunboats built for Danube flotilla.

Ship protection

Splinter and bullet proof.

Modernizations

None.

Naval service

No significant events.
