REGELE FERDINAND frigates (1987-1988/2004-2005)





Regele Ferdinand 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Regele Ferdinand (ex-Coventry) F221 124 Swan Hunter, Wallsend, UK 29.3.1984 8.4.1986 14.10.1988 // 9.9.2004 in service (2019)
Regina Maria (ex-London) F222 1030 Marconi Marine (YSL), Scotstoun, UK 7.2.1983 27.10.1984 5.6.1987 // 21.4.2005 in service (2019)


Technical data


Displacement standard, t

4100

Displacement full, t

4800

Length, m

146.5

Breadth, m

14.8

Draught, m

4.30 hull 6.40 screws

No of shafts

2

Machinery

COGAG: 2 Rolls-Royce Spey SM1A gas turbines + Rolls-Royce Tyne RM1C gas turbines

Power, h. p.

37540+9700=47240

Max speed, kts

30

Fuel, t

gas turbine oil 700

Endurance, nm(kts)

4500(18)

Armament

1 x 1 - 76/62 OTO Melara Compact SR, 2 x 3 - 324 STWS.2 TT (Stingray), 1 helicopter (Puma)

Electronic equipment

type 967/968, type 1007 radars, Radamec 2500 e/o system, type 2050 sonar, 4x DL-12T decoy RL, type 182 torpedo decoy, CACS / Nautis 3 CCS

Complement

203



Standard scale images

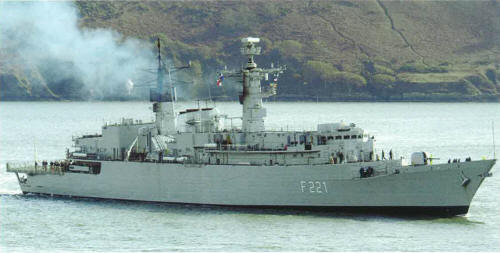

<i>Regele Ferdinand </i>2010
Regele Ferdinand 2010


Graphics

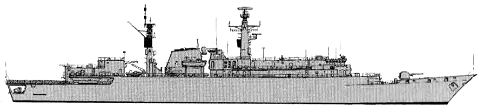

<i>Regele Ferdinand </i>2004
Regele Ferdinand 2004


Project history

Former British frigates of Broadsword class (Batch II), transferred partly unarmed. Ships were modernized before transfer: 76mm gun with Radamec optronic director was installed fwd, sonars were replaced by one type 2050, Terma DL-12T decoy launchers replaced old suite. CCS CACS-1 was modernized, partly become similar to Nautis 3. SSMs and Sea Wolf SAM were landed.

Modernizations

None.

Naval service

No significant events.
