DOHA large corvettes
Doha
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ضحى [Doha] | Fincantieri, Muggiano/Riva Trigoso, Italy | 27.11.2018 | 2020 | 2021 | building (2020) | ||
| ii | Fincantieri, Muggiano/Riva Trigoso, Italy | 2020 | 2021 | 2022 | ordered (2020) | ||
| iii | Fincantieri, Muggiano/Riva Trigoso, Italy | 2021 | 2022 | 2023 | ordered (2020) | ||
| iv | Fincantieri, Muggiano/Riva Trigoso, Italy | 2022 | 2023 | 2024 | ordered (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 3250 |
| Length, m | 107.0 |
| Breadth, m | 14.7 |
| Draught, m | 4.20 |
| No of shafts | 2 |
| Machinery | 4 MAN 22/38D diesels |
| Power, h. p. | 42900 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(15) |
| Armament | 2 x 4 MM40 Exocet SSM (8 MM40 Block 3), 2 x 8 Aster 30 SAM (16 ASter 30), 1 x 21 RAM SAM (21 RIM-116), 1 x 1 - 76/62 Leonardo-OTO Super Rapid, 2 x 1 - 30/82 Marlin WS-30, 1 helicopter (NFH90) |
| Electronic equipment | Kronos Grand 3D, NA-30S Mk 2, nav. radars, Medusa, SASS IRST e/o systems, Black Snake, Thesan sonars, Virgilius ECM suite, 2x Sylena Mk 2 decoy RL, Athena CCS |
| Complement | 112 |
Standard scale images

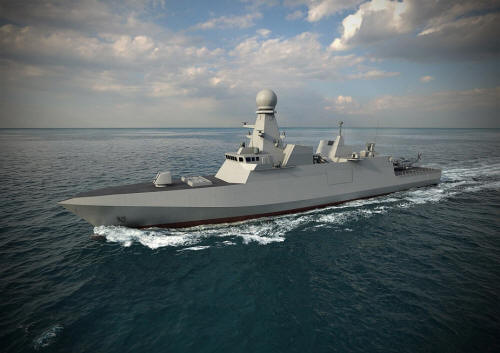

Doha
Graphics
Doha
Project history
ABM design of Fincantieri, ordered in 2016.
Modernizations
None.
Naval service
No significant events.
