BARZAN patrol boats (1975-1976)

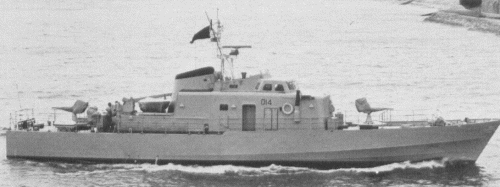

Al Wussail 1974

Ships


Name No Yard No Builder Laid down Launched Comp Fate
برزان [Barzan] Q11   Vosper Thornycroft, Portchester, UK     13.1.1975 stricken 1996
حوار [Hwar] Q12   Vosper Thornycroft, Portchester, UK     30.4.1975 stricken 1996
ذات أسري [That Assuari] Q13   Vosper Thornycroft, Portchester, UK     3.10.1975 stricken 2007
الوسائل [Al Wussail] Q14   Vosper Thornycroft, Portchester, UK     28.10.1975 stricken 2007
فتح الخطاب [Fateh Al Khatab] Q15   Vosper Thornycroft, Portchester, UK     22.1.1976 stricken 2007
طارق [Tariq] Q16   Vosper Thornycroft, Portchester, UK     1.3.1976 stricken 2007


Technical data


Displacement standard, t
Displacement full, t

120
Length, m

31.1 pp 32.4 oa
Breadth, m

6.30
Draught, m

1.60 hull
No of shafts

2
Machinery

2 Paxman Ventura 15RP200 diesels
Power, h. p.

6250
Max speed, kts

27
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

2 x 1 - 20/70 Mk 7
Electronic equipment

Decca 1226 radar
Complement25


Graphics


<i>Al Wussail </i>1974
Al Wussail 1974


Project history

Thornycroft 103ft type.

Modernizations

None.

Naval service

No significant events.
