BOMBARDA small landing ships (1969-1985)
Bombarda 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Bombarda | LDG105, 1975- LDG201 | EN do Mondego | 1969 | discarded 1997 | |||
| Alabarda | LDG106, 1975- LDG202 | EN do Mondego | 1971 | discarded 1997 | |||
| Bacamarte | LDG203 | EN do Mondego | 1985 | stricken 2015 |
Technical data
| Displacement standard, t | 510 |
|---|---|
| Displacement full, t | 652 |
| Length, m | 52.9 pp 59.0 oa |
| Breadth, m | 11.9 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 MTU MD225 diesels |
| Power, h. p. | 910 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(8) |
| Armament | 2 x 1 - 20/70 Mk 4 |
| Military load | 350 t of cargo |
| Electronic equipment | Decca RM316P radar |
| Complement | 21 |
Graphics

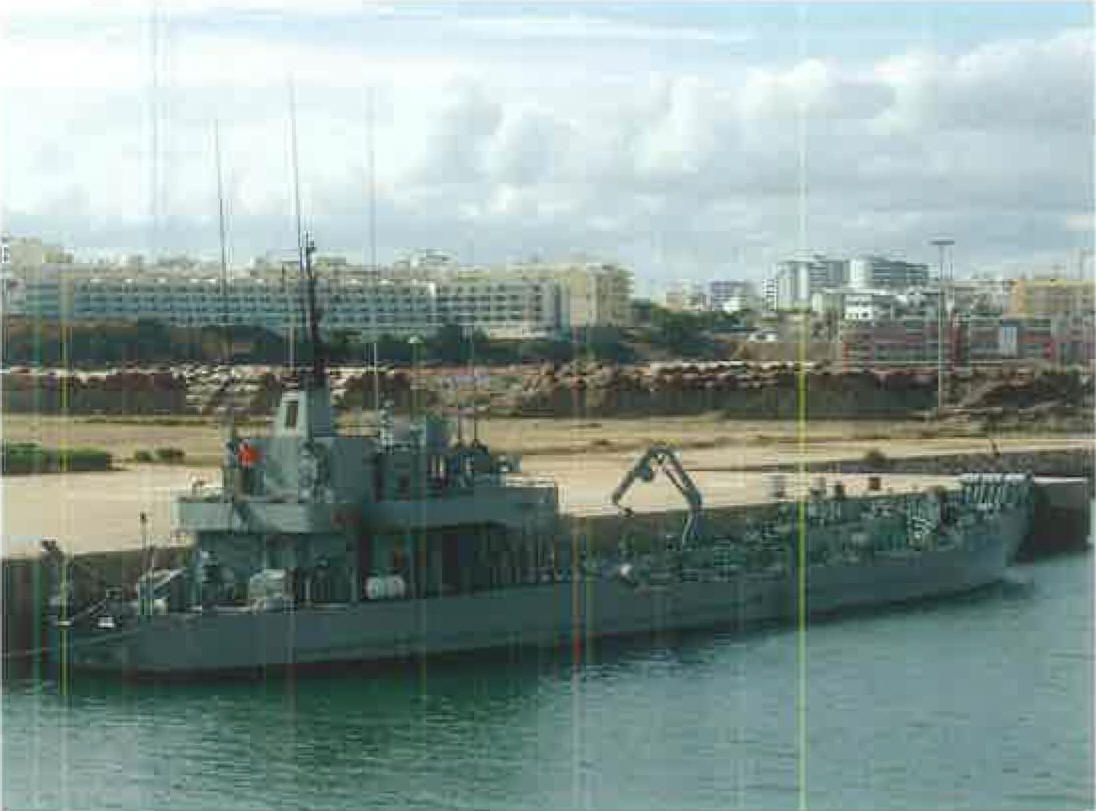

Bacamarte 2009

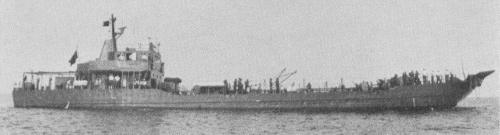

Bombarda 1978
Project history
Further development of the Alfange class, near to French EDIC.
Modernizations
None.
Naval service
No significant events.
