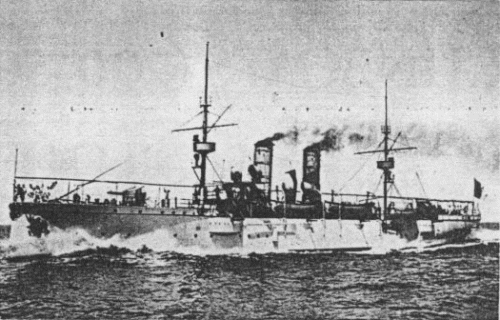

Adamastor 1898

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Adamastor			Orlando, Livorno, Italy	1.1.1895	12.7.1896	3.8.1897	discarded 11.1933

Technical data

Displacement normal, t	1729
Displacement full, t	1757
Length, m	74.0 pp
Breadth, m	10.7
Draught, m	4.65 max
No of shafts	2
Machinery	2 VTE, 4 cylindrical boilers
Power, h. p.	4000
Max speed, kts	18
Fuel, t	coal 420
Endurance, nm(kts)	4600(10)
Armour, mm	deck: 30, CT: 65
Armament	2 x 1 - 149/27 K.15/30, 4 x 1 - 105/37 K.10.5/40, 4 x 1 - 65/40 H(tr)65/40, 2 x 1 - 37/25 H(tr)37/25, 3 - 356 TT (1 bow, 2 beam)
Complement	237

Standard scale images

Graphics

Project history

Actually large gunboat with armoured deck. Intended for colonial service.

Ship protection

 30mm main deck protected machinery. CT had 65mm sides.

Modernizations

1922: - 2 x 1 - 149/27; + 2 x 1 - 120/44 A(tr)12/45

Naval service

No significant events.
