ARGOS patrol boats (1991)





Hidra 2007

Ships


Names Builders Completed Losses Transfers Discarding

P1150 Argos

P1151 Dragão

P1152 Escorpião

P1153 Cassiopeia

P1154 Hidra

Arsenal do Alfeite: P1150-1152

Conafil, Vila Real de Santo Antonio: P1153, 1154

1991: P1150-1154

None

None

in service (2019): P1150-1154



Technical data


Displacement standard, t84
Displacement full, t94
Length, m25.2 pp 27.2 oa
Breadth, m5.90
Draught, m1.40
No of shafts2
Machinery

2 MTU 12V386 TE84 diesels

Power, h. p.

3700

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)1350(15)
Armament

2 x 1 - 12.7/90

Electronic equipmentFuruno FR-1505DA radar
Complement8


Graphics

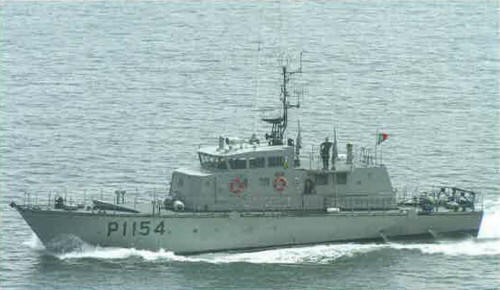

<i>Hidra </i>2007
Hidra 2007


Project history

GRP construction, 4m inspection RIB can be launched via stern ramp.

Modernizations

None.

Naval service

No significant events.
