WILK submarines (1964 - 1966 / 1987 - 1988)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Wilk (ex-B-98) | 292 | 806 | 196 Yd (Sudomekh), Leningrad, USSR | 4.4.1963 | 15.6.1963 | 15.5.1964 // 3.11.1987 | stricken 10.2003 |
| Dzik (ex-B-29) | 293 | 821 | New Admiralty, Leningrad, USSR | 25.3.1966 | 20.5.1966 | 28.11.1966 // 7.12.1988 | stricken 11.2003 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 1952 / 2475 |
| Length, m | 91.3 |
| Breadth, m | 7.50 |
| Draught, m | 5.09 |
| No of shafts | 3 |
| Machinery | 3 37D diesels / 1 PG-102 + 2 PG-101 electric motors |
| Power, h. p. | 6000 / 5400 (2700 + 2x1350) |
| Max speed, kts | 16.8 / 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 30000(8.1) / 400(2) |
| Armament | 10 - 533 TT (6 bow, 4 stern, 22 or 32 mines) |
| Electronic equipment | RLK-101 Albatros radar, MG-200 Arktika-M, Tuloma, MG-10M Kola-M, Svet-M sonars, Nakat ECM suite |
| Complement | 77 |
| Diving depth operational, m | 250 |

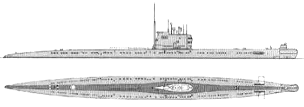

Standard scale images
Wilk 2000
Project history
Soviet submarines of project 641, transferred instead of planned new project 877 units.
Modernizations
None.
Naval service
No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
