SOKÓL submarines (1964 - 1967 / 2002 - 2004)

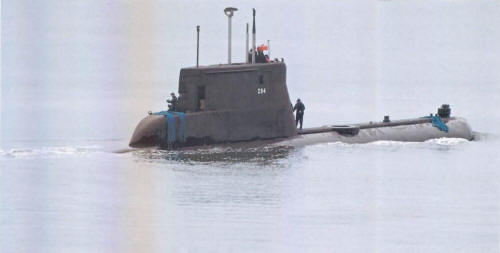

Sokól 2007 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sokól (ex-Stord) 294 364 Rheinstahl-Nordseewerke, Emden, West Germany 1.4.1966 2.9.1966 14.2.1967 // 25.5.2002 stricken 6.2018
Sęp (ex-Skolpen) 295 362 Rheinstahl-Nordseewerke, Emden, West Germany 1.11.1965 24.3.1966 17.8.1966 // 5.8.2002 in service (2019)
Bielik (ex-Svenner) 296 365 Rheinstahl-Nordseewerke, Emden, West Germany 8.9.1966 27.1.1967 12.6.1967 // 24.10.2003 in service (2019)
Kondor (ex-Kunna) 297 354 Rheinstahl-Nordseewerke, Emden, West Germany 3.3.1964 16.7.1964 29.10.1964 // 20.10.2004 stricken 12.2017


Technical data


Displacement standard, t



Displacement normal, t

294, 295, 297: 460 / 524

296: 472 / 538

Length, m

294, 295, 297: 47.4

296: 48.4

Breadth, m

4.60

Draught, m

4.58

No of shafts

1

Machinery

2 MTU 12V493 AZ80 GA31L diesel-generators, 1 electric motor

Power, h. p.

1200 / 1800

Max speed, kts

13.5 / 17

Fuel, t

diesel oil

Endurance, nm(kts)

5000(8) (snorkel) / 141(6)

Armament

8 - 533 TT (bow, 8 Tp612, NT37, DM-2A3)

Electronic equipment

type 1007 radar, DBQS-21F (CSU-83) sonar suite, Phoenix ECM suite, MSI90U CCS

Complement

21

Diving depth operational, m

200



Standard scale images


<i>Sokól </i>2010
Sokól 2010


Graphics


<i>Sokól </i>2007 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Sokól 2007 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former Norwegian Kobben class (German type 207) submarines. Ex-Svenner was used for training duties and has lengthened hull. Sister-boat Kobben was also transferred in July 2002 as a stationary training platform under the name Jastrzab. After modernization in 1988-1992 these submarines received new MSI90U CCS, modified for launch DM-2A3 torpedoes, but these torpedoes were not transferred to Poland.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
