KD-64 landing craft (1975)
KD-64 1975
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
517 KD-64 518 KD-67 519 KD-70 |
Stocznia Marynarki Wojennej, Gdynia: 517-519 |
1975: 517-519 |
none | none | 1984: 517-519 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 60 |
| Length, m | 21.3 |
| Breadth, m | 4.20 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Wola diesels |
| Power, h. p. | 600 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 2 - 14.5/89 |
| Military load | 40 troops, 1 vehicle |
| Complement | 4 |
Standard scale images

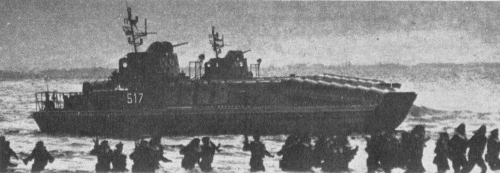

KD-64 1980
Graphics
KD-64 1975
Project history
Experimental project 719 (Marabut). Plastic hull.
Modernizations
None.
Naval service
No significant events.
