KD-11 landing craft (1988-1991)

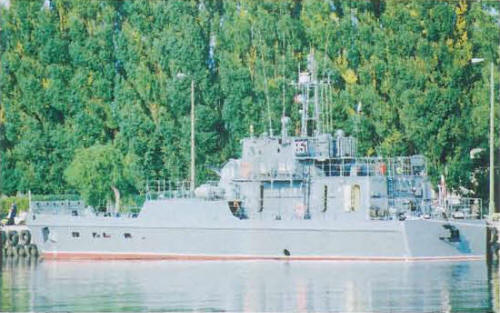

KD-11 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| KD-11 | 851 | Stocznia Marynarki Wojennej, Gdynia | 16.6.1988 | in service (2019) | |||
| KD-12 | 852 | Stocznia Marynarki Wojennej, Gdynia | 15.10.1990 | in service (2019) | |||
| KD-13 | 853 | Stocznia Marynarki Wojennej, Gdynia | 31.1.1991 | in service (2019) | |||
| KD-14 | Stocznia Marynarki Wojennej, Gdynia | --- | cancelled 1990 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 176 |
| Length, m | 33.6 wl 37.2 oa |
| Breadth, m | 7.27 |
| Draught, m | 1.67 |
| No of shafts | 3 |
| Machinery | 3 M-401A diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil 9 |
| Endurance, nm(kts) | 500(16) |
| Armament | 1 x 2 - 23/87 ZU-23-2 Wrobel-1, 2x PW-LWO line-charge RL, mines instead of cargo |
| Military load | 50 troops, 20 t cargo or 3 vehicles |
| Electronic equipment | SRN-207A radar |
| Complement | 12 |
Standard scale images
KD-11 2000
Graphics
KD-11 2003
Project history
Project 716, replacement for project 709. Previously planned class of 12 was reduced to four, of which only three were completed.
Modernizations
2010s, all: - SRN-207A radar; + Sperry radar
Naval service
No significant events.
