GRUNWALD medium landing ship (1973)

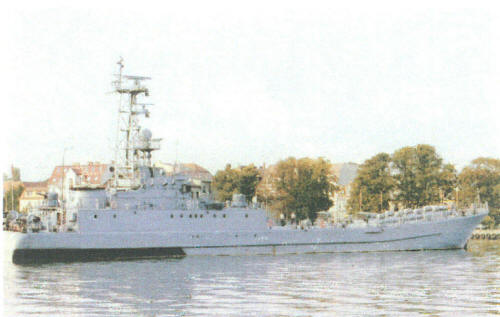

Grunwald 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Grunwald | 811 | Stocnia Północną, Gdansk | 5.11.1971 | 16.9.1972 | 21.4.1973 | stricken 3.2005 |
Technical data
| Displacement standard, t | 1233 |
|---|---|
| Displacement full, t | 1314 |
| Length, m | 76.0 pp 81.3 oa |
| Breadth, m | 9.30 |
| Draught, m | 1.20 fwd 2.60 aft |
| No of shafts | 2 |
| Machinery | 2 40DM diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 16.3 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2600(12) |
| Armament | 2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18M RL |
| Military load | 1 APC or 2 light trucks, 54 troops and command staff |
| Electronic equipment | Donets-2, MR-104 Rys' radars |
| Complement | 45 |
Standard scale images
Grunwald 1990
Graphics
Grunwald 2003
Project history
Project 776 (variation of built for USSR project 773), built mainly as command ship for landing operations. Short vehicle deck aft can accommodate only one 15t APC or 2 light trucks.
Modernizations
1980s: + 2 x 4 Fasta-4M SAM (16 Strela-3M)
1990s: - Donets-2 radar; + SRN-207, SRN-433XTA, SRN-7453 Nogat radars
Naval service
No significant events.
