Warszawa 1988 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Warszawa (ex-Smelyy)	56	1711	61 Kommunar Yd, Nikolayev, USSR	15.11.1966	6.2.1968	27.12.1969 // 9.1.1988	stricken 12.2003

Technical data

Displacement standard, t	3550
Displacement full, t	4510
Length, m	144.0
Breadth, m	15.8
Draught, m	4.57
No of shafts	2
Machinery	2 M-3E gas turbine units
Power, h. p.	72000
Max speed, kts	35.5
Fuel, t	gas turbine oil
Endurance, nm(kts)	3500(18)
Armament	4 x 1 Termit SSM (4 P-15M(4K51)), 2 x 2 M-1 Volna-M SAM (32 V-601(4K91)), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/69 21KM, 4 x 6 - 30/54 AK-630M, 1 x 5 - 533TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 14 - 22 mines, helicopter deck
Electronic equipment	MR-500 Kliver, NYR-27, 2x SRN-7453 Nogat, SRN-207, 2x Yatagan II, 2x MR-105 Turel', 2x MR-123 Vympel radars, MGK-335 Platina, MG-409P, MG-7 sonars, MI-110KM wake detector, Krab-11, Krab-12, MP-401 Start, Bizan'-4B, MRP-15-16 Zaliv ECM suites, 4x PK-16, 4x PK-10 decoy RL, Planshet-61 CCS
Complement	266

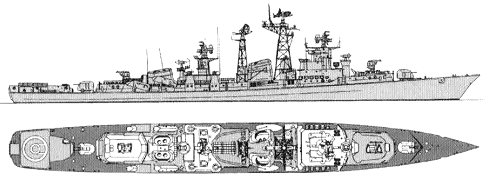

Standard scale images

Graphics

Project history

Former Soviet project 61MP large ASW ship. Served as fleet flagship.

Modernizations

None.

Naval service

No significant events.
