STRAŻNIK-3 patrol boats (project IC 16M III, 2007)
Strażnik-5 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SG-213 Strażnik-3 SG-214 Strażnik-4 SG-215 Strażnik-5 SG-216 Strażnik-6 |
Sundin Dokstavarvet, Doksta, Sweden: SG-213-216 |
2007: SG-213-216 |
none |
none |
in service (2019): SG-213-216 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 20 |
| Length, m | 15.9 |
| Breadth, m | 3.96 |
| Draught, m | 1.10 |
| No of shafts | 2 waterjets |
| Machinery | 2 Scania DI16 diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 240(20) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno M1934C radar |
| Complement | 4 + 8 passengers |
Graphics

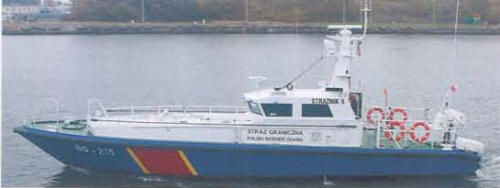

Strażnik-5 2007
Project history
Aluminium construction.
Modernizations
None.
Naval service
No significant events.
