KAPER-1 board guard ships (project SKS-40, 1991 - 1994)

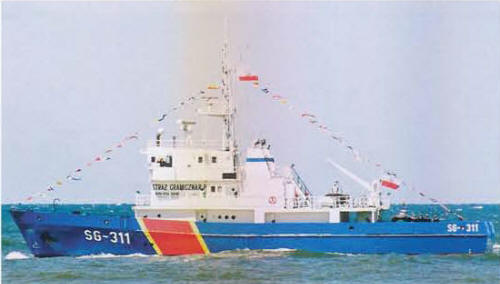

Kaper-1 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Kaper-1 | SG-311 | Wisla, Gdynia | 22.1.1991 | in service (2019) | |||
| Kaper-2 | SG-312 | Wisla, Gdynia | 3.4.1992 | 1.10.1994 | in service (2019) |
Technical data
| Displacement standard, t | 376 |
|---|---|
| Displacement full, t | 470 |
| Length, m | 40.2 pp 42.6 oa |
| Breadth, m | 8.37 |
| Draught, m | 2.80 |
| No of shafts | 2 |
| Machinery | 2 Sulzer-HCP 8ATL-25D diesels |
| Power, h. p. | 4720 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2600(14) |
| Armament | 2 x 1 - 7.6/80 |
| Electronic equipment | SRN-231, Decca radars, Simrad fish-finding sonar |
| Complement | 13 |
Standard scale images
Kaper-1 2000
Graphics
Kaper-1 2004
Project history
Project SKS-40. Fisheries protection vessels.
Modernizations
None.
Naval service
No significant events.
