KP-161 patrol craft (project 918M, 1973 - 1983)





1975

Ships


Names Builders Completed Losses Transfers Discarding

KP-161 - 165; 1992- SG-161-165

KP-166 - 176

Stocznia Marynarki Wojennej, Gdynia: KP-161-176

1973: KP-161, 162

1974: KP-163, 164

1976: KP-165

1977: KP-166

1978: KP-167, 168

1979: KP-169

1980: KP-170

1982: KP-171-174

1983: KP-175, 176

none

none

1999: SG-162, 163, 165

2004-2005: KP-166, 169, 170, 172, 173, 175, 176

2006: KP-167, 168, 171, 174

2012: SG-161, SG-164



Technical data


Displacement standard, t

80

Displacement full, t

87

Length, m

28.6

Breadth, m

5.76

Draught, m

1.30

No of shafts

3

Machinery

3 M-50F-4 diesels

Power, h. p.

3600

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)1160(11)
Armament

1 x 2 - 25/82 2M-3M

Electronic equipment

RN-231 radar

Complement

13



Standard scale images


<i>KP-166 </i>2000
KP-166 2000
<i>KP-161 </i>1980
KP-161 1980


Graphics

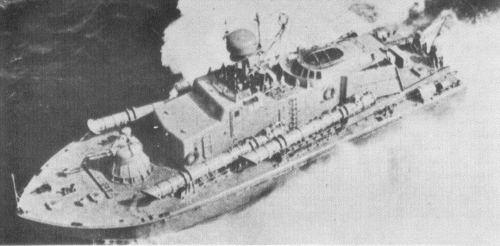

1975
1975


Project history

Project 918M.

Modernizations

1986-1990, all: - 1 x 2 - 25/82; + 1 x 2 - 23/87 Wrobel-2M

1991, KP-166-176: + 2 - 533 OTAM-53 TT (2 SET-53M), MG-329M sonar; displacement became 93/100t, speed 27.8kts

Naval service

In 1991 all 11 boats were transferred to the navy but in 1992 five earlier units were returned to Border guard.
