TAGBANUA small landing ship (2011)
Tagbanua 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Tagbanua | AT296 | PICMW, Misamis Oriental | 28.9.2011 | 14.12.2011 | in service (2019) |
Technical data
| Displacement standard, t | 580 |
|---|---|
| Displacement full, t | |
| Length, m | 45.7 pp 51.4 oa |
| Breadth, m | 10.0 |
| Draught, m | 1.52 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar CAT C32ACERT diesels |
| Power, h. p. | |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 6 x 1 - 12.7/90 |
| Military load | 200 troops, 110 t cargo |
| Electronic equipment | 2x Sperry Visionmaster FT radars |
| Complement | 15 |
Graphics

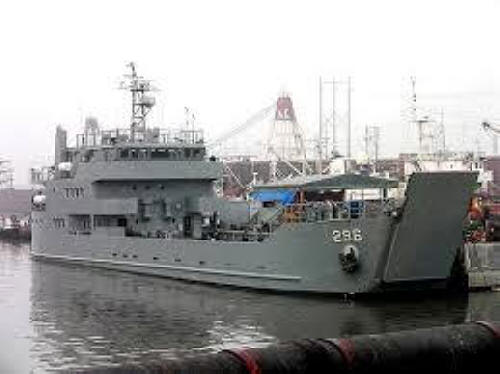

Tagbanua 2011
Project history
250m² open cargo well.
Modernizations
None.
Naval service
No significant events.
