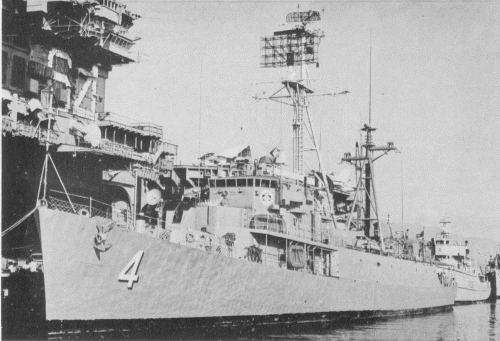

Rajah Lakandula 1977

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Rajah Lakandula (ex-Trần Hưng Đạo, ex-Camp)	PS4		Brown SB, Houston, USA	1.1943	16.4.1943	16.9.1943 // 5.4.1976	hulk late 1988

Technical data

Displacement standard, t	1590
Displacement full, t	1850
Length, m	91.4 wl 93.3 oa
Breadth, m	11.2
Draught, m	4.27 full load
No of shafts	2
Machinery	4 Fairbanks Morse 38D1/8x10 diesels
Power, h. p.	6080
Max speed, kts	19
Fuel, t	diesel oil 300
Endurance, nm(kts)	11500(11)
Armament	2 x 1 - 76/50 Mk 34, 1 x 2 - 40/60 Mk 1, 2 x 2 - 20/70 Mk 24, 1 x (1 - 81/12 M29 mortar + 1 - 12.7/90), 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT
Electronic equipment	SPS-28, SPS-10, Mk 34 radars, SQS-31 sonar
Complement	150

Standard scale images

Graphics

Project history

USN destroyer escort of Edsall (FMR) class, converted to radar picket after WWII. Transferred to South Vietnam 6.2.1971, escaped in April 1975 to Philippines, acquired by them and formally transferred and commissioned next year.

Modernizations

None.

Naval service

No significant events.
