SAN JUAN SAR patrol ships (2000-2003)

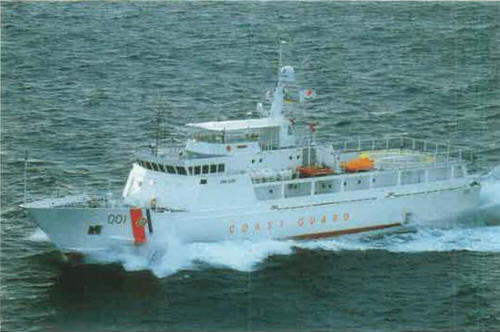

San Juan 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| San Juan | 001 | Tenix, Henderson, Australia | 19.6.2000 | in service (2019) | |||
| EDSA II | 002 | Tenix, Henderson, Australia | 4.10.2000 | 14.12.2000 | in service (2019) | ||
| Pampanga | 003 | Tenix, Henderson, Australia | 30.1.2003 | in service (2019) | |||
| Batangas | 004 | Tenix, Henderson, Australia | 8.8.2003 | in service (2019) |
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement full, t | 540 |
| Length, m | 51.0 wl 56.0 oa |
| Breadth, m | 10.6 |
| Draught, m | 2.50 max |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3612 diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 24.5 |
| Fuel, t | diesel oil 88 |
| Endurance, nm(kts) | 2000(15) |
| Armament | helicopter deck |
| Electronic equipment | 2x Furuno radars |
| Complement | 38 + 300 survivors |
Standard scale images
San Juan 2010
Graphics
San Juan 2000
Project history
Built with Australian financial assistance. Have a medical facilities. Helicopter deck can accept S-76 or UH-1H helicopter (Coast Guard has only two BO-105 helicopter as on 2018). Carry a 6.5m rescue RIB on the stern ramp and 4 4.5m RIBs handled by cranes. May be fitted with 12.7mm MG.
Modernizations
None.
Naval service
No significant events.
