FIGHTING SHIPS OF THE WORLD
PHILIPPINES
COAST GUARD
BORACAY patrol boats (2018-2019)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Boracay | 2401 | Océa, St-Nazaire, France | 25.4.2018 | 15.10.2018 | in service (2018) | ||
| Panglao | 2402 | Océa, St-Nazaire, France | 4.6.2018 | 15.10.2018 | in service (2018) | ||
| Malamawi | 2403 | Océa, St-Nazaire, France | 10.7.2018 | 16.1.2019 | in service (2019) | ||
| Kalanggaman | 2404 | Océa, St-Nazaire, France | 13.8.2018 | 16.1.2019 | in service (2019) |
Technical data
| Displacement standard, t | 120 |
|---|---|
| Displacement full, t |
|
| Length, m | 19.7 wl 23.6 oa |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 10V2000 M72 diesels |
| Power, h. p. | 3050 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(12) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 11 |

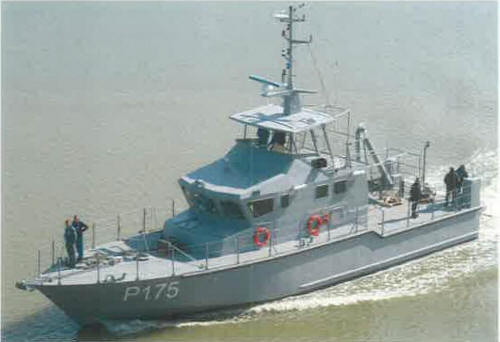

Graphics
Project history
French FPB72 Mk 2 design.
Modernizations
None.
Naval service
No significant events.
