KAGITINGAN large patrol craft (1979-1983)

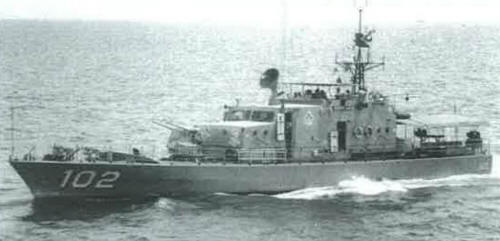

  Bagong Lakas 1993

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Kagitingan P101   W. Müller, Hameln, West Germany     9.2.1979 stricken 1992, re-commissioned 1993, stricken 2011
Bagong Lakas P102   W. Müller, Hameln, West Germany     9.2.1979 stricken 1992, re-commissioned 1993, in service (2019)
Katapangan P103   Cavite NSY     25.1.1980 stricken 1992, re-commissioned 1993, stricken 1989
Bagong Silang P104   Cavite NSY     6.1983 stricken 1992, re-commissioned 1993, in service (2019)


Technical data


Displacement standard, t

135
Displacement full, t

150
Length, m

30.6 pp 37.0 oa
Breadth, m

6.20
Draught, m

1.70
No of shafts2
Machinery

2 MTU MB820 DB1 (16V538 TB91) diesels
Power, h. p.

2050
Max speed, kts

16
Fuel, tdiesel oil
Endurance, nm(kts)
Armament

1 x 2 - 30/75 Emerlec EX-30, 4 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment

Raytheon radar
Complement30


Graphics


  <i>Bagong Lakas</i> 1993
  Bagong Lakas 1993


Project history

Unsuccessful design that could not approach designed 28kts speed.

Modernizations

None.

Naval service

: All were stricken in 1992 but were rehabilitated under 1994 budget.
