CONRADO YAP coastal patrol craft (1974-1979/1993-1994)

HOME

FIGHTING SHIPS OF THE WORLD

PHILIPPINES

COASTAL FORCES


PG852 1993

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
PG840 Conrado Yap (ex-...) PG842 Teodorico Dominado Jr. (ex-...) PG843 Cosme Acosta (ex-...) PG844 Jose Artiaga (ex-...) PG846 Nicanor Jimenez (ex-...) PG847 Leopoldo Regis (ex-...) PG848 Leon Tadina (ex-...) PG849 Loreto Danipog (ex-...) PG851 Apollo Tiano (ex-...) PG853 Sulpicio Fernandez (ex-...)	Korea SB, Pusan, South Korea: PG840, 842-844, 846-849, 851, 853	1974-1979 // 6.1993: PG840, 842-844, 846-849 1974-1979 // 6.1994: PG851, 853	none	none	2010-2011: PG840, 842-844, 846, 848 2012: PG849 2015: PG853 2016: PG851 2017-2018: PG847

Names

Builders

Completed

Losses

Transfers

Discarding

PG840 Conrado Yap (ex-...)

PG842 Teodorico Dominado Jr. (ex-...)

PG843 Cosme Acosta (ex-...)

PG844 Jose Artiaga (ex-...)

PG846 Nicanor Jimenez (ex-...)

PG847 Leopoldo Regis (ex-...)

PG848 Leon Tadina (ex-...)

PG849 Loreto Danipog (ex-...)

PG851 Apollo Tiano (ex-...)

PG853 Sulpicio Fernandez (ex-...)

Korea SB, Pusan, South Korea: PG840, 842-844, 846-849, 851, 853

1974-1979 // 6.1993: PG840, 842-844, 846-849

1974-1979 // 6.1994: PG851, 853

none

2010-2011: PG840, 842-844, 846, 848

2012: PG849

2015: PG853

2016: PG851

2017-2018: PG847

Technical data

Displacement standard, t	70
Displacement full, t	80
Length, m	25.7
Breadth, m	5.40
Draught, m	1.20
No of shafts	2
Machinery	2 MTU 16V538 TD90 diesels
Power, h. p.	5200
Max speed, kts	40
Fuel, t	diesel oil
Endurance, nm(kts)	500(20)
Armament	1 x 1 - 40/60 Mk 3, 4 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	Raytheon 1645 radar
Complement	25

Graphics

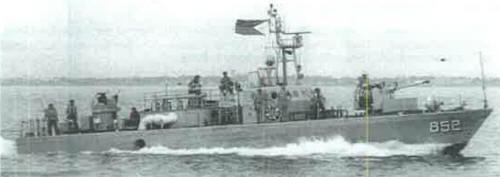

PG852 1993

Project history

Former South Korean 'Sea Hawk' class boats. Two more boats, PG845 and PG852, were never reactivated and used for spares.

Modernizations

None.

Naval service

: No significant events.
