BA482 interceptor craft (2009)
BA483 2012
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BA482 - 484 |
Lung Teh SB, Taipei, Taiwan: BA482-484 |
2009: BA482-484 |
none |
none |
in service (2019): BA482-484 |
Technical data
| Displacement standard, t | 19 |
|---|---|
| Displacement full, t | |
| Length, m | 16.5 |
| Breadth, m | 4.76 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar diesels |
| Power, h. p. | 2100 |
| Max speed, kts | 42 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(30) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Military load | 16 troops |
| Electronic equipment | Raymarine radar |
| Complement | 5 |
Graphics

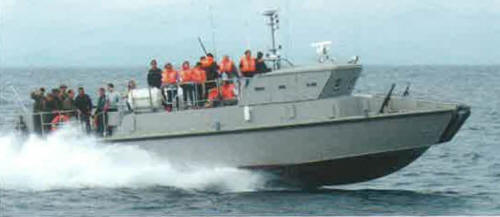

BA483 2012
Project history
MPAC (Multi-Purpose Attack Craft) Mk 1, assault launch. Developed on the base of Swedish Combatbåt 90 design.
Modernizations
None.
Naval service
: No significant events.
