FERRÉ submarines (1912-1913)
Ferré 1912
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Ferré | Schneider, Chalon-sur-Saône, France | 1912 | 1912 | stricken 1919 | |||
| Palacios | Schneider, Chalon-sur-Saône, France | 1913 | 1913 | stricken 1919 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 300 / 400 |
| Length, m | 33.5 |
| Breadth, m | 4.80 |
| Draught, m | 3.70 |
| No of shafts | 2 |
| Machinery | 2 Schneider-Carels diesels / 2 electric motors |
| Power, h. p. |
|
| Max speed, kts | 13 / 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(10) / |
| Armament | 4 - 450 TT (bow, 6) |
| Complement | 21 |
| Diving depth operational, m | 30 |
Standard scale images

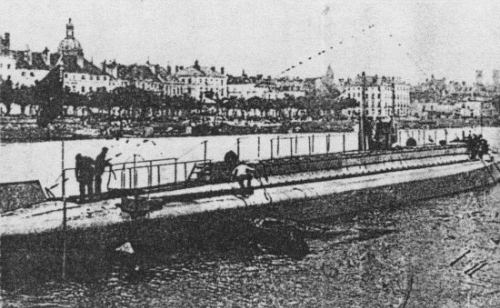

Ferré 1913
Graphics
Ferré 1912
Project history
The acquisition of these Laubeuf type submarines was influenced by the French Naval Mission (1908-14) to Peru. They were transported to Peru in the Kangaroo which had been built specifically to carry submarines. Their careers were shortened due to the scarcity of batteries and spare parts.
Modernizations
None.
Naval service
No significant events.
