Carvajal 1979

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

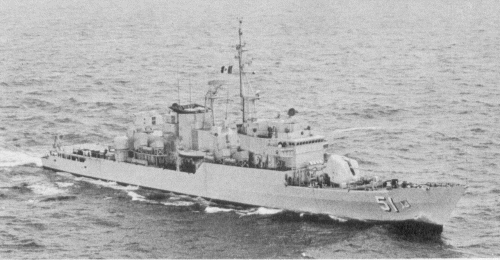

Carvajal, 12.2013- Guardiamarina San Martín	51, 12.2013- 201		CNR, Riva Trigoso, Italy	8.10.1974	13.11.1976	23.12.1978	Coast Guard 12.2013, in service (2019)
Villavicencio	52		CNR, Riva Trigoso, Italy	6.10.1976	7.2.1978	25.6.1979	in service (2019)

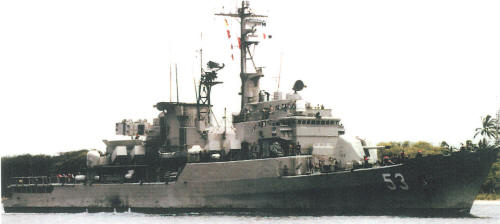

Montero, 9.2017- Almirante Grau	53		SIMA, Callao	10.1978	8.10.1982	25.7.1984	in service (2019)

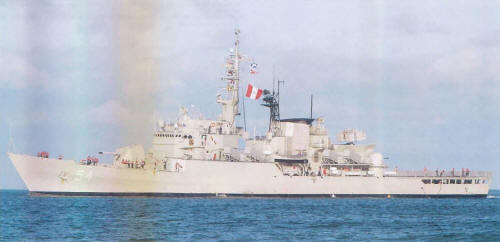

Mariategui	54		SIMA, Callao	1979	8.10.1984	28.12.1987	in service (2019)

Technical data

Displacement standard, t	2208
Displacement full, t	2500
Length, m	106.00 pp 113.2 oa
Breadth, m	11.3
Draught, m	3.66
No of shafts	2
Machinery	CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 GMT A230-20M diesels
Power, h. p.	50000 / 7800
Max speed, kts	32
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	3450(20.5)
Armament	8 x 1 Teseo SSM (8 Otomat Mk 2), 1 x 8 Albatros SAM (8 Aspide), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT (A-244), 1 helicopter (AB-212)
Electronic equipment	3RM20, RAN-10S, RAN-11LX, 2x RTN-30X, 2x RTN-20X radars, EDO-610E sonar, Lambda ECM suite, 2x SCLAR decoy RL, IPN-10 CCS
Complement	193

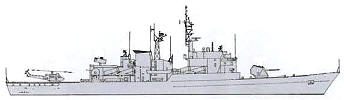

Standard scale images

Graphics

Project history

Units differ considerably from the standard Lupo design. They have two masts, a standard, not a telescopic hangar, 40mm guns installed a deck higher and hand-powered reloading system for the Albatros SAM.

Modernizations

1997, all: + 2 x 4 MGP-86 SAM (8 9M39 Igla)

1997-1998, Carvajal, Mariategui: helicopter deck was extended to the stern; - 1 helicopter (AB-212); + 1 helicopter (ASH-3D Sea King)

2004, Carvajal: - RAN-10S radar; + LW-08 radar

2013, Guardiamarina San Martín: - 8 x 1 Teseo SSM, 1 x 8 Albatros SAM, 2 x 3 - 324 TT, LW-08, 2x RTN-30X, 1x RTN-20X radars, EDO-610E sonar, 2x SCLAR decoy RL

Naval service

No significant events.
