RÍO CAÑETE patrol craft (1976-1985)





Río Ocoña 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Río Nepeña 243   SIMA, Chimbote     1.12.1981 in service (2019)
Río Tambo 244   SIMA, Chimbote     1982 in service (2019)
Río Ocoña 245   SIMA, Chimbote     15.7.1982 in service (2019)
Río Huarmey 246   SIMA, Chimbote     1982 in service (2019)
Río Zaña 247   SIMA, Chimbote   12.3.1982 12.2.1985 in service (2019)
Río Cañete 248   SIMA, Callao     31.3.1976 stricken 1990


Technical data


Displacement standard, t
Displacement full, t

296

Length, m

49.1 pp 51.0 oa

Breadth, m

7.40

Draught, m

1.70

No of shafts

2

Machinery

4 Bazán-MTU V8V16/18TLS diesels

Power, h. p.

5600

Max speed, kts

248: 21

others: 22

Fuel, t

diesel oil

Endurance, nm(kts)3000(17)
Armament

1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment

Decca 1226 radar

Complement

30



Graphics

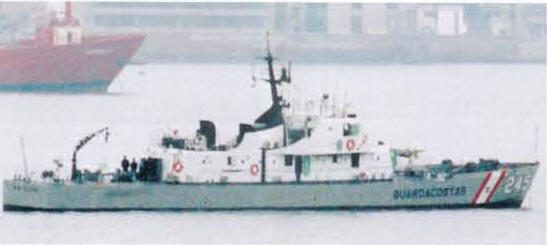

<i>Río Ocoña </i>2004
Río Ocoña 2004


Project history

Steel hull and aluminium superstructure.

Modernizations

1996-1998, all survived: - 1 x 1 - 40/60

Naval service

No significant events.
