FIGHTING SHIPS OF THE WORLD
PARAGUAY
AMPHIBIOUS CRAFT
EDVP01 landing launches (1981-1993)
EDVP03 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
EDVP01-03 |
Arsenal de Marina, Asunción: EDVP01, 02 Ladario, Brazil: EDVP03 |
1981: EDVP03 1993: EDVP01, 02 |
none |
none |
in service (2019): EDVP01-03 |
Technical data
| Displacement standard, t | 9 |
|---|---|
| Displacement full, t | 13 |
| Length, m | 10.9 |
| Breadth, m | 3.21 |
| Draught, m | 1.04 aft |
| No of shafts | 1 |
| Machinery | 1 Saab Scania D11 diesel |
| Power, h. p. | 157 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | 36 troops or 3.5 t cargo |
| Electronic equipment | none |
| Complement | 2 |
Graphics

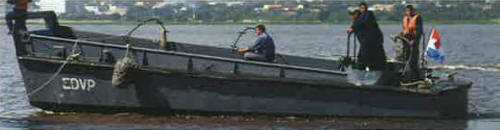

EDVP03 2011
Project history
LCVP Mk 7 copies.
Modernizations
None.
Naval service
No significant events.
