CAPITÁN ORTIZ patrol craft (1979/1994)

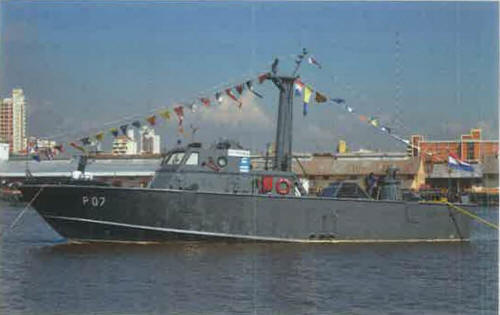

Teniente Robles 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P06 Capitán Ortiz (ex-FABG1) P07 Teniente Robles (ex-FABG2) |
China SB, Kaohsiung: P06, 07 |
1979 // 1994: P06, 07 |
none |
none |
in service (2019): P06, 07 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 45 |
| Length, m | 22.9 |
| Breadth, m | 5.49 |
| Draught, m | 0.80 hull 1.82 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC92 diesels |
| Power, h. p. | 2605 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(32) |
| Armament | 1 x 1 - 20/68 T75, 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 926 radar |
| Complement | 10 |
Standard scale images
Capitán Ortiz 2000
Graphics
Teniente Robles 2011
Project history
Former prototype Taiwanese guided-missile patrol boats, with a design based on the Israeli Dvora class but with slightly different hullform. Transferred without missiles.
Modernizations
None.
Naval service
No significant events.
