PRESIDENTE MANUEL AMADOR GUERRERO small landing ship (2018)
Presidente Manuel Amador Guerrero 2018
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Presidente Manuel Amador Guerrero | L403 | Damen Song Cam SY, Haiphong, Vietnam | 10.4.2018 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 725 |
| Length, m | 57.3 |
| Breadth, m | 12.0 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar C148 diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | 210 t cargo |
| Electronic equipment | Furuno radar |
| Complement | 16 |
Graphics

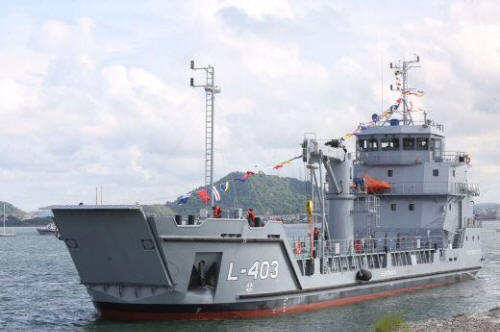

Presidente Manuel Amador Guerrero 2018
Project history
Damen 5612 design. LCU.
Modernizations
None.
Naval service
No significant events.
