GNT01 landing craft (1950s/1972-1989)
Frailes del Norte 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| GNT01 | USA | 1950s // 1972 | stricken 1986 | ||||
| GNT02 | USA | 1950s // 1972 | stricken 1989 | ||||
| GNT03 | USA | 1950s // 1972 | stricken 1989 | ||||
| Frailes del Norte | T06 | USA | 1950s // 1989 | stricken 2010 | |||
| Frailes del Sur | T07 | USA | 1950s // 1989 | stricken 2010 |
Technical data
| Displacement standard, t | 34 |
|---|---|
| Displacement full, t | 107 |
| Length, m | 22.7 |
| Breadth, m | 6.43 |
| Draught, m | 1.17 fwd, 1.30 aft |
| No of shafts | 2 |
| Machinery | 2 General Motors 6-71 diesels |
| Power, h. p. | 590 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(12) |
| Armament | none |
| Military load | 200 troops or 80 t of cargo |
| Complement | 4 - 5 |
Standard scale images
GNT01 1975
Graphics

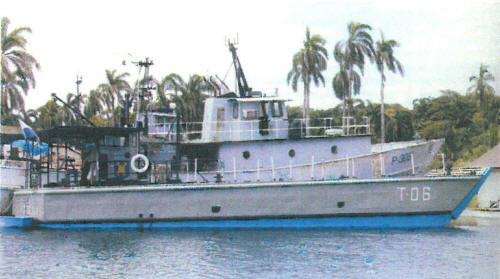

Frailes del Norte 2003
Project history
Former USN LCM(8)-class craft.
Modernizations
None.
Naval service
No significant events.
