GENERAL ESTEBAN HUERTAS small landing ship (1968/2004)

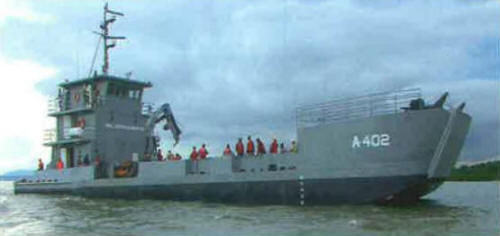

General Esteban Huertas 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| General Esteban Huertas (ex-YFU81) | A402 | Pacific Coast Engineering, Alameda, USA | 9/1968 // 2004 | in service (2019) |
Technical data
| Displacement standard, t | 220 |
|---|---|
| Displacement full, t | 380 |
| Length, m | 38.1 |
| Breadth, m | 10.9 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 General Motors 6-71 diesels |
| Power, h. p. | 715 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Military load | cargo |
| Electronic equipment | 2x Raytheon R-96 radars |
| Complement | 11 |
Graphics
General Esteban Huertas 2013
Project history
Former USN YFU71-class harbor utility craft. Bow ramp enables amphibious beaching.
Modernizations
None.
Naval service
No significant events.
