RICARDO MARTINELLI BERROCAL patrol craft (2002/2014-2016)

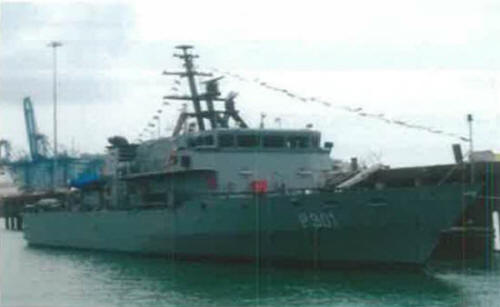

Ricardo Martinelli Berrocal 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Ricardo Martinelli Berrocal (ex-Ubaldo Diciotti) | P901 | Fincantieri, Muggiano, Italy | 8.4.2002 | 20.7.2002 // 4.2014 | in service (2019) | ||
| (ex-Luigi Dattilo) | P902 | Fincantieri, Muggiano, Italy | 2002 | 30.11.2002 // 4.2016 | in service (2019) |
Technical data
| Displacement standard, t | 390 |
|---|---|
| Displacement full, t | 427 |
| Length, m | 47.2 pp 52.8 oa |
| Breadth, m | 8.10 |
| Draught, m | 2.50 |
| No of shafts | 4 |
| Machinery | 4 Isotta-Fraschini V1716 T2 MSD diesels |
| Power, h. p. | 12840 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(16) |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | 2x SPN-753XS(v)2 radars |
| Complement | 22 |
Standard scale images
Ricardo Martinelli Berrocal 2015
Graphics
Ricardo Martinelli Berrocal 2014
Project history
Former Ubaldo Diciotti-class patrol craft of Italian Coast Guard.
Modernizations
None.
Naval service
No significant events.
