PRESIDENTE GUILLERMO ENDARA patrol boats (2001-2002/2012)





Presidente Martin Torrijos 2011

Ships


Names Builders Completed Losses Transfers Discarding

PC220 Presidente Guillermo Endara (ex-CP266)

PC221 Presidente Ernesto Pérez Balladares (ex-CP270)

PC222 Presidente Mireya Moscoso (ex-CP272)

PC223 Presidente Martin Torrijos (ex-CP275)

Rodriguez, Messina, Italy: PC220-223

2001 // 2012: PC220-222

2002 // 2012: PC223

none

none

in service (2019): PC220-223



Technical data


Displacement standard, t42
Displacement full, t55
Length, m22.1 pp 25.0 oa
Breadth, m5.76
Draught, m0.92
No of shafts2 + 1 waterjet
Machinery

3 Isotta-Fraschini V1312 T2 diesels

Power, h. p.

3600

Max speed, kts

35

Fuel, t

diesel oil 10

Endurance, nm(kts)900(18)
Armament

2 x 1 - 7.6/90

Electronic equipmentJRC radar
Complement11


Graphics

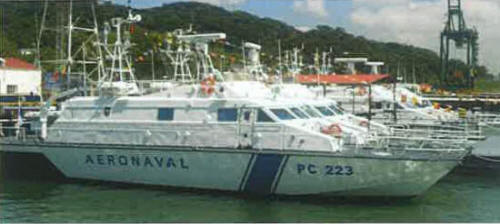

<i>Presidente Martin Torrijos </i>2011
Presidente Martin Torrijos 2011


Project history

CP265-class patrol boats of Italian Coast Guard, donated to Panama in June 2011 and delivered in May 2012.

Modernizations

None.

Naval service

No significant events.
