PANQUIACO large patrol craft (1971)

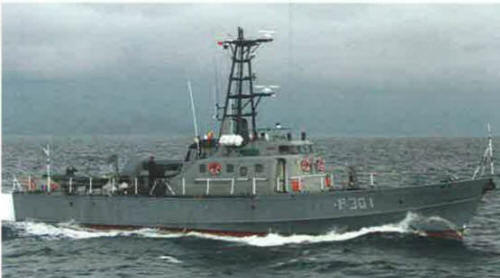

Panquiaco 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Panquiaco | GC10, 1989- P301 | Vosper Thornycroft, Portchester, UK | 22.7.1970 | 7/1971 | in service (2019) | ||
| Ligia Elena | GC11, 1989- P302 | Vosper Thornycroft, Portchester, UK | 25.8.1970 | 7/1971 | in service (2019) |
Technical data
| Displacement standard, t | 96 |
|---|---|
| Displacement full, t | 145 |
| Length, m | 31.4 |
| Breadth, m | 5.80 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Paxman Ventura 12-YJCM diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(14) |
| Armament | 2 x 1 - 20/70 Mk 4 |
| Electronic equipment | Decca 916 radar |
| Complement | 23 |
Graphics
Panquiaco 2011
Project history
Vosper 103ft type.
Modernizations
1992, both: diesels were replaced by 2 General Motors Detroit Diesel 16V71TI (2500hp, 24kts); - 2 x 1 - 20/70, Decca 916 radar; + 2 x 1 - 7.6/90, 2x Raytheon R-81 radars
Naval service
Ligia Elena was sunk in December 1989 during US invasion but later recovered.
