NAOS patrol craft (1965/1992)





Naos 2002

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Naos (ex-Erline, ex-Orrin) P303   Equitable Equipment, New Orleans, USA     1965 // 7.1992 stricken 2014


Technical data


Displacement standard, t

96

Displacement full, t

120

Length, m

32.0

Breadth, m

7.60

Draught, m

2.10

No of shafts

2

Machinery

2 Caterpillar diesels

Power, h. p.
Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)

550(8)

Armament

2 x 1 - 7.6/90

Electronic equipment

Raytheon 2600 radar

Complement

11



Graphics

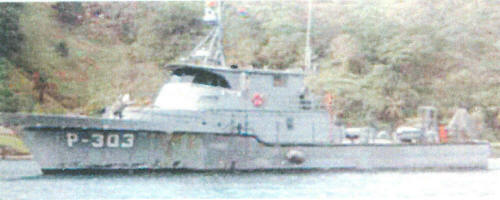

<i>Naos </i>2002
Naos 2002


Project history

Former offshore crew boat, acquired in 1967 and operated by the US Naval Underwater Systems Center in Bermuda.

Modernizations

None.

Naval service

No significant events.
