COMANDANTE TORRIJOS patrol craft (1982)





Comandante Torrijos 1982

Ships


Names Builders Commissioned Losses Transfers Discarding

GC16 Comandante Torrijos, 1989- P201 Comandante Torrijos, late 1990s- P201 General Esteban Huertas

GC17 Presidente Porras, 1989- P202 Presidente Porras

Swiftships, Morgan City, USA: GC16, 17

1982: GC16, 17

P202 (sunk 1989)

None

2012: P201



Technical data


Displacement standard, t31
Displacement full, t

35

Length, m

17.9 wl 19.8 oa

Breadth, m

5.64

Draught, m

1.83

No of shafts

2

Machinery

2 General Motors Detroit Diesel 12V71TI N75 diesels

Power, h. p.1020
Max speed, kts

23

Fuel, t

diesel oil 6

Endurance, nm(kts)500(8)
Armament

1 x 1 - 12.7/90

Electronic equipmentDecca 110 radar
Complement

8



Graphics

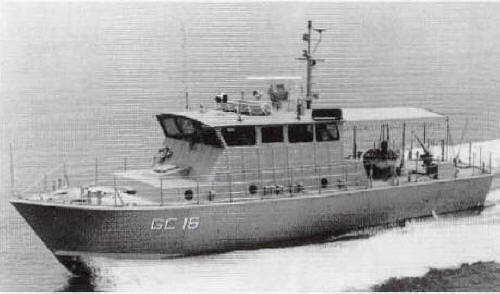

<i>Comandante Torrijos </i>1982
Comandante Torrijos 1982


Project history

Swiftships 65ft Commercial Cruiser type. Aluminium hull.

Modernizations

None.

Naval service

No significant events.
