PANAMA
COASTAL FORCES
COCLE patrol boat (1967/1999)
Cocle 2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P814 Cocle |
Sewart Seacraft, Berwick: P814 |
1967 // 1999: P814 |
none |
none |
in service (2019): P814 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 23 |
| Length, m | 15.3 |
| Breadth, m | 4.00 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel V12 diesels |
| Power, h. p. | 960 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno 1411 radar |
| Complement | 5 |
Graphics

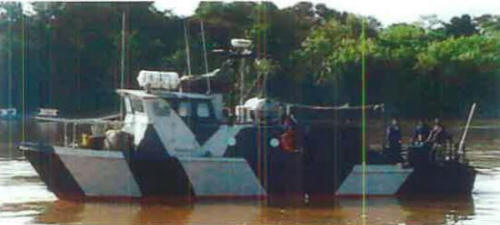

Cocle 2013
Project history
Former USN Swift class boat, used for training.
Modernizations
None.
Naval service
No significant events.
