CHIRIQUI patrol boats (1986/1998)
Bocas del Toro 2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P841 Chiriqui (ex-68PB841) P842 Veraguas (ex-68PB842) P843 Bocas del Toro (ex-68PB843) |
Atlantic Marine, Fort George Island, USA: P841-843 |
1986 // 1998: P841-843 |
P841 (foundered 2012), P842 (foundered 2012) |
none |
in service (2019): P843 |
Technical data
| Displacement standard, t | 42 |
|---|---|
| Displacement full, t | 46 |
| Length, m | 22.5 |
| Breadth, m | 5.30 |
| Draught, m | 1.07 (hull) 1.80 propellers |
| No of shafts | 3 |
| Machinery | 3 General Motors 8V71TI diesels |
| Power, h. p. | 1950 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000 |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno 1411 radar |
| Complement | 7 |
Graphics

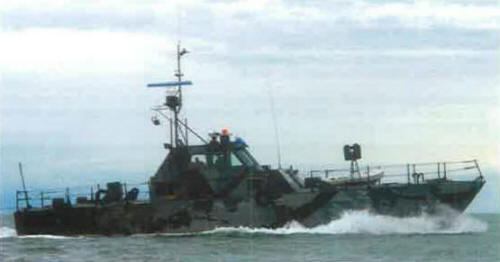

Bocas del Toro 2013
Project history
Former USN Sea Spectre PB Mk IV class boats, transferred without armament.
Modernizations
None.
Naval service
No significant events.
