CACIQUE NOME patrol craft (1970s/1993)





Cacique Nome 1998

Ships


Names Builders Commissioned Losses Transfers Discarding

P203 Cacique Nome (ex-Negrita)

USA: P203

1970s // 1993: P203

none

none

2013: P203


100 - 1000 t displacement/ BRT tonnage vessels


Names

P203 Cacique Nome (ex-Negrita)

Builders

USA: P203

Commissioned

1970s // 1993: P203

Losses

none

Transfers

none

Discarding

2013: P203


Technical data


Displacement standard, t
Displacement full, t

68
Length, m

24.4
Breadth, m4.60
Draught, m1.80
No of shafts2
Machinery

2 General Motors Detroit Diesel 12V71 diesels
Power, h. p.840
Max speed, kts

13
Fuel, tdiesel oil
Endurance, nm(kts)250(10)
Armament

2 x 1 - 7.6/90
Electronic equipmentRaytheon 71 radar
Complement8


Graphics

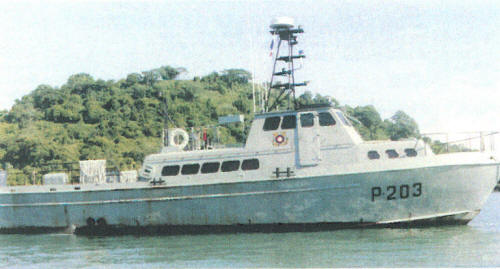

<i>Cacique Nome </i>1998
Cacique Nome 1998


Project history

Oilfield crew boat of US construction. Commissioned by navy after refit.

Modernizations

None.

Naval service

No significant events.
