X01 midget submarines (1988-1992)

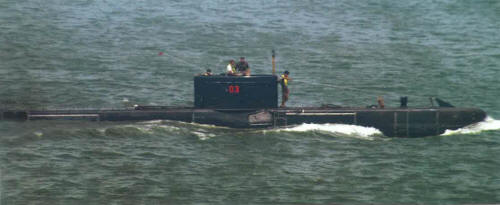

X03 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| X01 | Karachi NSY | 1988 | in service (2019) | ||||
| X02 | Karachi NSY | 1988 | in service (2019) | ||||
| X03 | Karachi NSY | 1992 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 100 / 110 |
| Length, m | 27.3 |
| Breadth, m | 2.30 |
| Draught, m | 2.00 |
| No of shafts | 1 |
| Machinery | 1 diesel-generator, 1 electric motor |
| Power, h. p. | 200 |
| Max speed, kts | 9 / 7 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(7) / 60(4.5) |
| Armament | 2 - 533 TC (2 E14/E15) or 12 Mk 414 Limpet mines |
| Electronic equipment | sonar |
| Complement | 6 + 8 divers |
| Diving depth operational, m | 150 |
Graphics
X03 2003
Project history
MG-110 design of COSMOS, Italy. Can carry two torpedoes or 8-12 magnetic mines or 8 combat swimmers with 2t of explosives and two CF2 FX60 swimmer delivery vehicles.
Modernizations
None.
Naval service
No significant events.
