KHALID submarines (1999-2008)

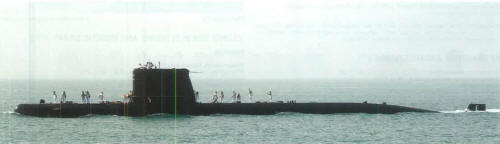

Hamza 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| خالد [Khalid] | S137 | DCN, Cherbourg, France | 15.7.1995 | 18.12.1998 | 21.12.1999 | in service (2019) | |
| سعد [Saad] | S138 | DCN, Cherbourg, France // Karachi NSY | 2.12.1999 | 24.8.2002 | 13.12.2003 | in service (2019) | |
| حمزہ [Hamza] (ex-Ghazi) | S139 | Karachi NSY | 2000 | 10.8.2006 | 26.9.2008 | in service (2019) |
Technical data
| Displacement standard, t | S137, 138: 1250 |
|---|---|
| Displacement normal, t | S137, 138: 1510 / 1760 S139: 1730 / 1980 |
| Length, m | S137, 138: 67.6 S139: 76.2 |
| Breadth, m | 6.80 |
| Draught, m | 5.40 |
| No of shafts | 1 |
| Machinery | S137, 138: 2 SEMT-Pielstick 16PA4 V185 diesel-generators, 1 Jeumont electric motor / 1 cruising electric motor S139: 2 SEMT-Pielstick 16PA4 V185 diesel-generators / MESMA AIP, 1 Jeumont electric motor / 1 cruising electric motor |
| Power, h. p. | S137, 138: 4600 / 4800 / 23 S139: 4600 / 270 / 4800 / 23 |
| Max speed, kts | S137, 138: 12.5 / 20.5 S139: 12.5 / 20.5 / 4 |
| Fuel, t | diesel oil 200 |
| Endurance, nm(kts) | S137, 138: 7900(10) (snorkel) / 350(3.5) S139: 7900(10) (snorkel) / 2000(3.5) |
| Armament | 4 - 533 TT (bow, 16 F17 mod. 2, DM-2A4, inc. SM-39 Exocet SSM (4 SM-39)) |
| Electronic equipment | type 1007 radar, TSM 2233 Mk 1, DUUX-5 (TSM 2055), TSM 2933 sonars, DR-3000U ECM suite, SUBTICS CCS |
| Complement | 36 |
| Diving depth operational, m | 320 |
Standard scale images
Khalid 2010
Graphics
Hamza 2009
Project history
French Agosta 90B class. First submarine was built entirely in France, three pre-fabricated sections for the second were built in September 1995 - May 1998 and shipped from France to Karachi in 1998 for outfitting and assembly, the third was built in Karachi using about 20% French components and materials. Hamza received AIP system during construction.
Modernizations
2013, Saad: received AIP system, all features became as for S139 Hamza (Khalid is planned to receive)
2020, Khalid (as planned): - type 1007 radaar, DR-3000U EM suite, SUBTICS CCS; + may be ability to carry and launch Babur III CruM, Sharp Eye Doppler submarine radar, ARES-2SC Havelsan ECM suite, Sonar Integrated Submarrine Command and Control system CCS, may be AIP system
2023, Saad (as planned): - type 1007 radaar, DR-3000U EM suite, SUBTICS CCS; + may be ability to carry and launch Babur III CruM, Sharp Eye Doppler submarine radar, ARES-2SC Havelsan ECM suite, Sonar Integrated Submarrine Command and Control system CCS
Naval service
No significant events.
