L215 landing craft, air-cushion (2014)
L216 2014
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L215, 216 |
Griffon Hovercraft, Southampton, UK: L215, 216 |
2014: L215, 216 |
none |
none |
in service (2019): L215, 216 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 38 |
| Length, m | 21.2 |
| Breadth, m | 8.81 |
| Draught, m | - / |
| No of shafts | 2 air propellers + 2 lift fans |
| Machinery | 2 Iveco Vector 20 diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(35) |
| Armament | 1 x 1 - 7.6/90 |
| Military load | 70 troops or 8 t cargo |
| Electronic equipment | Raytheon R-80 radar |
| Complement | 9 |
Graphics

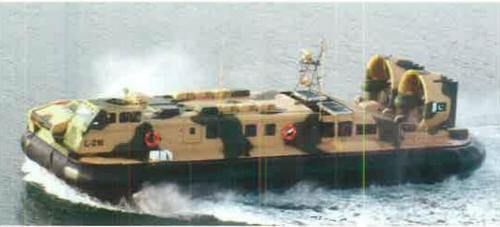

L216 2014
Project history
British Griffon 8100 design.
Modernizations
None.
Naval service
No significant events.
