ZULFIQUAR frigates (2009-)
Zulfiquar 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| زوفیقوار [Zulfiquar] | F251 | Hudong, Shanghai, China | 24.7.2007 | 7.4.2008 | 30.7.2009 | in service (2019) | |
| شمشیر [Shamsheer] | F252 | Hudong, Shanghai, China | 4.2008 | 31.10.2008 | 19.12.2009 | in service (2019) | |
| سیف [Saif] | F253 | Hudong, Shanghai, China | 4.11.2008 | 28.5.2009 | 15.9.2010 | in service (2019) | |
| اسلت [Aslat] | F254 | KSEW, Karachi | 10.12.2009 | 16.6.2011 | 3.9.2013 | in service (2019) | |
| F255 | KSEW, Karachi | 2016 | 2018 | 2019 | building (2019) | ||
| F256 | KSEW, Karachi | 2016 | 2018 | 2019 | building (2019) |
Technical data
| Displacement standard, t | 2400 |
|---|---|
| Displacement full, t | 3140 |
| Length, m | 111.0 pp 123.0 oa |
| Breadth, m | 13.4 |
| Draught, m | 4.80 |
| No of shafts | 2 |
| Machinery | 4 SEMT-Pielstick 16PA6STC diesels |
| Power, h. p. | 28200 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(18) |
| Armament | 2 x 4 C-802 SSM (8 YJ-82), 1 x 8 FM-90/HQ-7 SAM (16 HQ-7), 1 x 1 - 76/59 AK-176M, 2 x 7 - 30/77 type 730B, 2 x 3 - 324 B515 TT (ET52), 2 x 6 type 87 ASWRL, 1 helicopter (Z-9EC Haitun) |
| Electronic equipment | type 517H-1, type 363D, 2x type 1007, type 344, type 347, type 345 radars, e/o system, E5 sonar, NR-6A (RWD-8 + NJ-81-3) ECM suite, 4x decoy RL, ZKJ-3C CCS |
| Complement | 202 |
Standard scale images

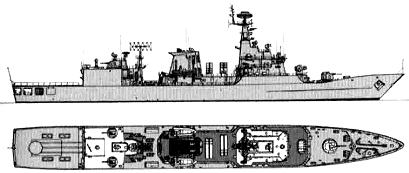

Zulfiquar 2010
Graphics

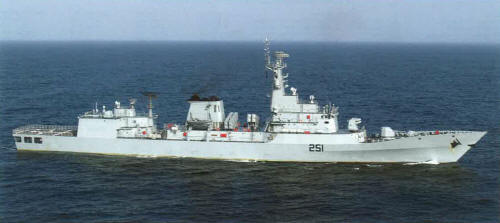

Zulfiquar 2013
Project history
Chinese Jiangwei-II (F-22P) class, ordered as replacement for obsolete Leander and Amazon classes. FM-90 is the export designation for the Chinese HQ-7 SAM.
Modernizations
None.
Naval service
No significant events.
