Tariq 2013

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

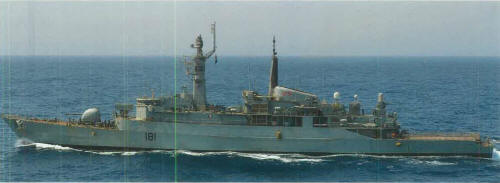

طارق [Tariq] (ex-Ambuscade)	D181	1008	Yarrow SB, Scotstoun, UK	1.9.1971	18.1.1973	5.9.1975 // 28.7.1993	in service (2019)
بابر [Babur] (ex-Amazon)	D182	4228	Vosper Thornycroft, Woolston, UK	6.11.1969	26.4.1971	11.5.1974 // 30.9.1993	stricken 2014
خیبر [Khaibar] (ex-Arrow)	D183	1009	Yarrow SB, Scotstoun, UK	28.9.1972	5.2.1974	29.7.1976 // 1.3.1994	in service (2019)
بدر [Badr] (ex-Alacrity)	D184	1010	Yarrow SB, Scotstoun, UK	5.3.1973	18.9.1974	2.7.1977 // 1.3.1994	stricken 4.2013
تیپپو سلطان [Tippu Sultan] (ex-Avenger)	D185	1012	Yarrow SB, Scotstoun, UK	30.10.1974	20.11.1975	15.4.1978 // 29.7.1994	in service (2019)

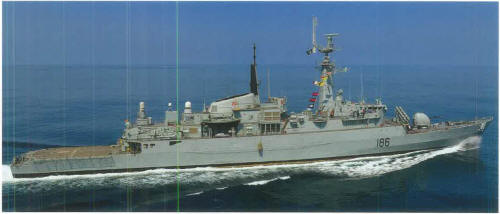

شاہ جہاں [Shah Jahan] (ex-Active)	D186	4233	Vosper Thornycroft, Woolston, UK	21.7.1971	23.11.1972	17.6.1977 // 23.9.1994	in service (2019)

Technical data

Displacement standard, t	3100
Displacement full, t	3700
Length, m	109.7 wl 117.0 oa
Breadth, m	12.7
Draught, m	4.80 hull 6.40 sonar
No of shafts	2
Machinery	COGOG: 2 Rolls-Royce Olympus TM3B gas turbines / 2 Rolls-Royce Tyne RM1C gas turbines
Power, h. p.	50000 / 9900
Max speed, kts	30
Fuel, t	gas turbine oil
Endurance, nm(kts)	4000(17)
Armament	D181-183, 185: 4 x 1 Exocet MM38 SSM (4 MM38/GWS50, provision for), 1 x 4 Sea Cat GWS24 SAM (12 Sea Cat), 1 x 1 - 114/55 Mk 8, 2 x 1 - 20/70 Mk 7, 1 helicopter (Lynx) D184, 186: 4 x 1 Exocet MM38 SSM (4 MM38/GWS50, provision for), 1 x 4 Sea Cat GWS24 SAM (12 Sea Cat), 1 x 1 - 114/55 Mk 8, 2 x 1 - 20/70 Mk 7, 2 x 3 - 324 STWS.2 TT, 1 helicopter (Lynx)
Electronic equipment	type 1006, type 992R, 2x type 912 radars, type 184P, type 162M sonars, UAA(1) ECM suite, 2x Corvus decoy RL, type 182 torpedo decoy, CAAIS DBA-2 CCS
Complement	177

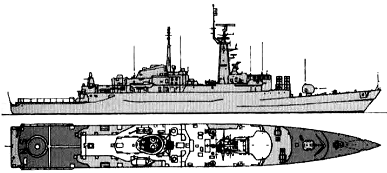

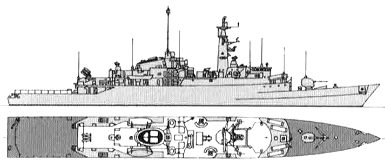

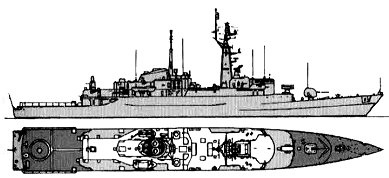

Standard scale images

Graphics

Project history

Former RN Amazon class (Type 21) frigates, purchased for compensation of deleted ex-USN frigates.

Modernizations

1998-2001, Tariq181: - 4 x 1 Exocet MM38 SSM, 1 x 4 Sea Cat GWS24 SAM, 2 x 1 - 20/70, type 992R, 2x type 912 radars, UAA(1) ECM suite, CAAIS DBA-2 CCS; + 1 x 6 LY-60N SAM (6 LY-60), 1 x 6 - 20/76 Mk 15 Phalanx, DA-08, LL-1, Mk 90 radars, Najir Mk 2 e/o system, DR-3000S1X ECM suite, 9LV Mk 3 CCS

1998-2001, Babur182: - 4 x 1 Exocet MM38 SSM, 1 x 4 Sea Cat GWS24 SAM, 2 x 1 - 20/70, type 912 radar, CAAIS DBA-2 CCS; + 2 x 2 Harpoon SSM (4 RGM-84A), 2 x 2 - 25/80 type 61M, 1 x 6 - 20/76 Mk 15 Phalanx, 2 - 400 M85 TT (Tp43X2), Mk 90 radar, Najir Mk 2 e/o system, 9LV Mk 3 CCS

1998-2001, Khaibar183: - 4 x 1 Exocet MM38 SSM, 1 x 4 Sea Cat GWS24 SAM, 2 x 1 - 20/70, type 992R, 2x type 912 radars, UAA(1) ECM suite, CAAIS DBA-2 CCS; + 1 x 6 LY-60N SAM (6 LY-60), 1 x 6 - 20/76 Mk 15 Phalanx, 2 - 400 M85 TT (Tp43X2), DA-08, LL-1, Mk 90 radars, Najir Mk 2 e/o system, DR-3000S1X ECM suite, 4x 4-round decoy RL, 9LV Mk 3 CCS

1998-2001, Badr184: - 4 x 1 Exocet MM38 SSM, 1 x 4 Sea Cat GWS24 SAM, 2 x 1 - 20/70, type 912 radar, CAAIS DBA-2 CCS; + 2 x 2 Harpoon SSM (4 RGM-84A), 2 x 2 - 25/80 type 61M, 1 x 6 - 20/76 Mk 15 Phalanx, Mk 90 radar, Najir Mk 2 e/o system, 9LV Mk 3 CCS

1998-2001, Tippu Sultan185: - 4 x 1 Exocet MM38 SSM, 1 x 4 Sea Cat GWS24 SAM, 2 x 1 - 20/70, type 992R, 2x type 912 radars, UAA(1) ECM suite, CAAIS DBA-2 CCS; + 1 x 6 LY-60N SAM (6 LY-60), 2 x 1 - 30/75 DS-30B, DA-08, LL-1 radars, Najir Mk 2 e/o system, DR-3000S1X ECM suite, 4x 4-round decoy RL, 9LV Mk 3 CCS

1998-2001, Shah Jahan186: - 4 x 1 Exocet MM38 SSM, 1 x 4 Sea Cat GWS24 SAM, 2 x 1 - 20/70, type 912 radar, UAA(1) ECM suite, CAAIS DBA-2 CCS; + 2 x 2 Harpoon SSM (4 RGM-84A), 2 x 2 - 25/80 type 61M, 1 x 6 - 20/76 Mk 15 Phalanx, Mk 90 radar, Najir Mk 2 e/o system, DR-3000S1X ECM suite, 9LV Mk 3 CCS

2010s, all survived: + 4 x 1 - 12.7/90, ability to carry Dauphin helicopter instead of Alouette III

2010s, Tariq, Tippu Sultan: + 2 x 1 - 400 M85 TT (Tp43X2)

2010s, some: - type 1006 radar; + type 1007 radar

2010s, Tariq: - 2x Corvus decoy RL; + 2x MASS decoy RL

2010s, Khaibar: - 2 x Corvus , 4x 4-round decoy RL; + 2x SRBOC Mk 36 decoy RL

2010s, Tipu Sultan: - 2x Corvus, 4x 4-round decoy RL; + 2x MASS decoy RL

2010s, Shah Jahan: -2x Corvu decoy RL; + 2x SRBOC decoy RL

Naval service

No significant events.
