AZMAT missile corvettes (2012-)

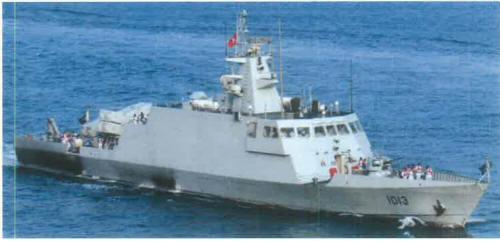

Azmat 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| عظمت [Azmat] | P1013 | Xinggang, Tianjin, China | 1.3.2011 | 23.9.2011 | 23.4.2012 | in service (2019) | |
| دہشت [Dehshat] | P1014 | KSEW, Karachi | 28.10.2011 | 16.8.2012 | 13.6.2014 | in service (2019) | |
| ہمت [Himmat] | P1027 | KSEW, Karachi | 11.8.2015 | 17.9.2016 | 2017 | in service (2019) | |
| iv | KSEW, Karachi | 2016 | 2017 | 2018 | building (2019) |
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement full, t | 600 |
| Length, m | 63.0 |
| Breadth, m | 8.80 |
| Draught, m | 2.40 |
| No of shafts | 4 |
| Machinery | 4 diesels |
| Power, h. p. | |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(18) |
| Armament | P1013, 1014: 2 x 4 C-802 SSM (8 YJ-82), 1 x 2 - 37/63 type 76A, 1 x 6 - 30/54 AK-630 P1027,...: 2 x 3 Harbah SSM (6 Harbah), 1 x 6 - 30/54 AK-630, 1 x 1 - 25/92 STOP |
| Electronic equipment | type 360, type 347 radars, 2x RDC-32 decoy RL |
| Complement | 14 |
Standard scale images
Azmat 2015
Graphics
Azmat 2012
Project history
Derivatives of the Chinese type 037-II. Fitted with stern gate for launch and recovery of the RIB.
Modernizations
None.
Naval service
No significant events.
