BADR destroyers (1946/1956)

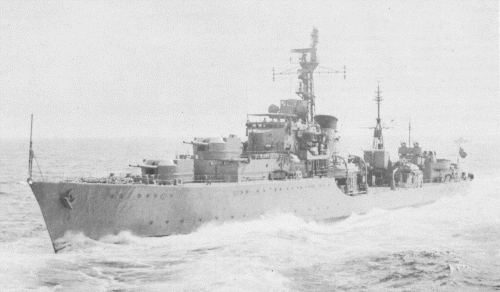

Badr 1977

Ships


Name No Yard No Builder Laid down Launched Comp Fate
بدر [Badr] (ex-Gabbard) D47, 1963- D161   Swan Hunter, Wallsend, UK 5/1943 16.3.1945 4/1946 // 29.2.1956 MSA 1985, stricken 1989
خیبر [Khaibar] (ex-Cadiz) D79, 1963- D163   Fairfield, Govan, UK 2/1944 16.9.1944 12/1946 // 29.2.1956 sunk 5.12.1971


Technical data


Displacement standard, t

2325

Displacement full, t

3361

Length, m

108.2 pp 115.5 oa

Breadth, m

12.3

Draught, m

4.62 deep load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers

Power, h. p.

50000

Max speed, kts

35.75

Fuel, t

oil 727, diesel oil 40

Endurance, nm(kts)4400(20)
Armament

2 x 2 - 114/45 Mk 4, 2 x 2 - 40/60 Mk 5, 2 x 2 - 40/60 STAAG Mk 2, 4 x 1 - 40/60 Mk 3, 2 x 4 - 533 TT, 1 x 3 - 305 Squid Mk 3 ASWRL

Electronic equipment

2x type 262, type 275, 2x type 282, type 291, type 293 radars, type 144Q, type 147B sonars

Complement

186 - 222



Standard scale images

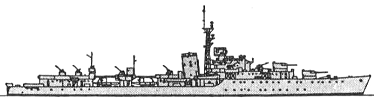

<i>Badr </i>1965
Badr 1965


Graphics


<i>Badr </i>1977
Badr 1977


Project history

British 'Battle' class destroyers, modernized and refitted with US MDAP funds. Badr was handed over by Pakistan Navy 24.1.1957, and Khaibar 1.2.1957.

Modernizations

1970s, Badr: - 2 x 2 - 40/60 STAAG, 1 x 1 - 40/60, 1 x 4 - 533 TT, type 262, 2x type 282, type 291 radars, type 144Q, type 147B sonars; + type 975, SNW-10 radars, type 170, type 174 sonars

Naval service

Khaibar  was sunk 5.12.1971 off Karachi by Indian missile FAC of Project 205. Badr became HQ ship of the new Maritime Safety Agency in 1985.
