P551 patrol boats (1979-1980)
Shahbaz 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P551, 1987- P551 ساد [Sadd] P552, 1987- P552 شہباز [Shahbaz] P553, 1987- P553 وقار [Waqar] P554, 1987- P554 برق [Burq] P555 - 568 |
Crestitalia, Ameglia, Italy: P551-568 |
1979-1980: P551-568 |
none |
none |
in service (2019): P551-568 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 23 |
| Length, m | 16.5 |
| Breadth, m | 5.20 |
| Draught, m | 0.88 |
| No of shafts | 2 |
| Machinery | P551-554: 2 MTU diesels P555-568: 2 V6 diesels |
| Power, h. p. | P551-554: 2200 P555-568: 1600 |
| Max speed, kts | P551-554: 35 P555-568: 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 425(25) |
| Armament | P551-554: 1 x 1 - 20/70 Mk 7 P555-568: 1 x 1 - 14.5/93 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics

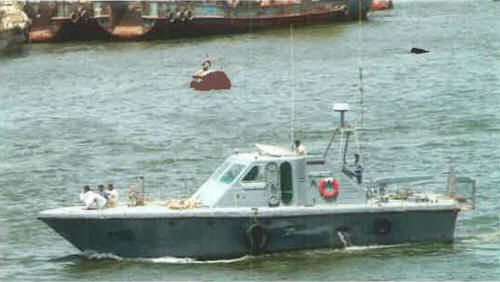

Shahbaz 2003
Project history
MV55 design. GRP hull. Customs service. 4 boats were in 1987 transferred to Coast Guard.
Modernizations
None.
Naval service
No significant events.
